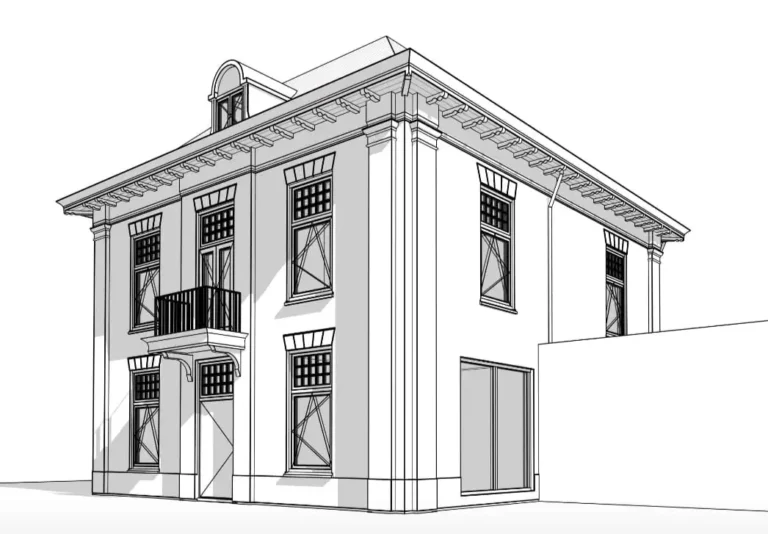

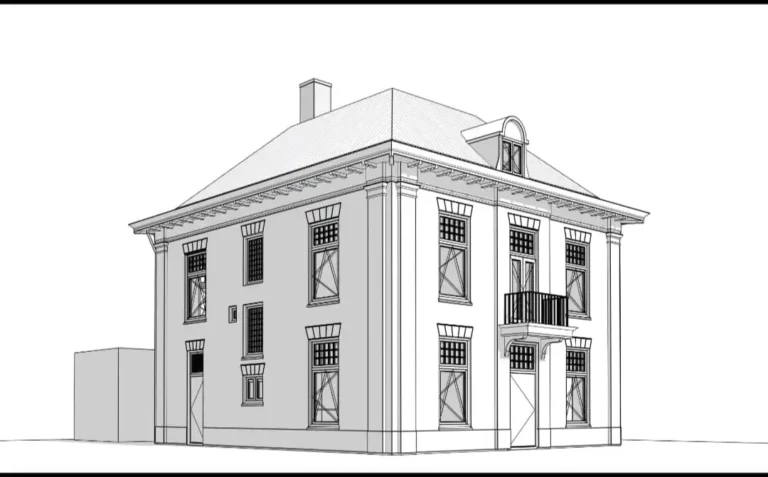

Oriole delivered a complete architectural model from raw 3D scan data — from start to finish.

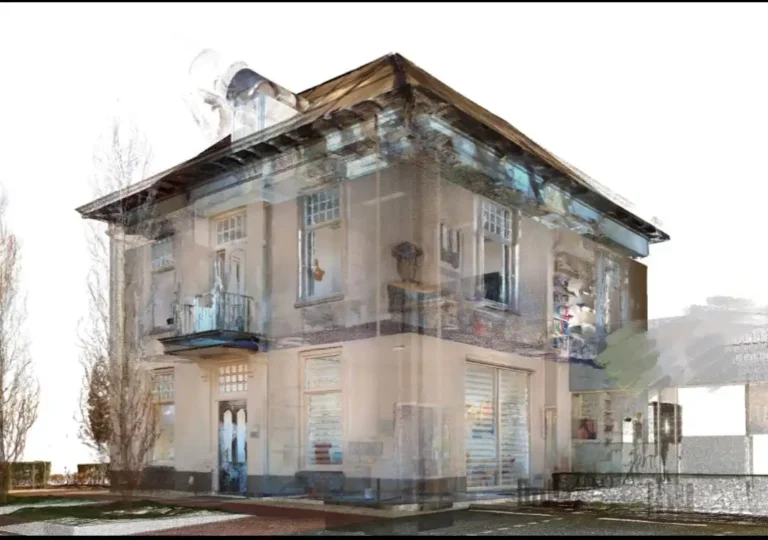

The input data consisted of noisy, raw point clouds captured on-site. Despite the heavy noise, we were able to accurately process and align the data and build a highly detailed BIM model.Registered multiple scans into a single coordinate system.
Managed overlapping regions and occlusions.
Achieved a final registration accuracy of ±5 mm.
Project Gallery
Project Categories: Residential Building
Specifications
Building Type
Residential Scan to BIM
Trades Covered
Architecture and Structure
Scope of Work
Walls, floors, ceilings, doors, and windows.
Modelled interior wall studs, often hidden in traditional scans, to provide detailed framing data.
Maintained high accuracy while ensuring the model stayed clean and efficient for use.
Level of Development
LOD 400
Project Timeline
3-4 Weeks
Resources Used
3-4 Engineers
Challenges Addressed
Significant scan noise and missing geometry, especially in tight or reflective areas.
Discrepancies between scan data and existing building plans.
Balanced high-detail requirements with model performance.
Software Used
Revit
Auto CAD
Autodesk Recap
